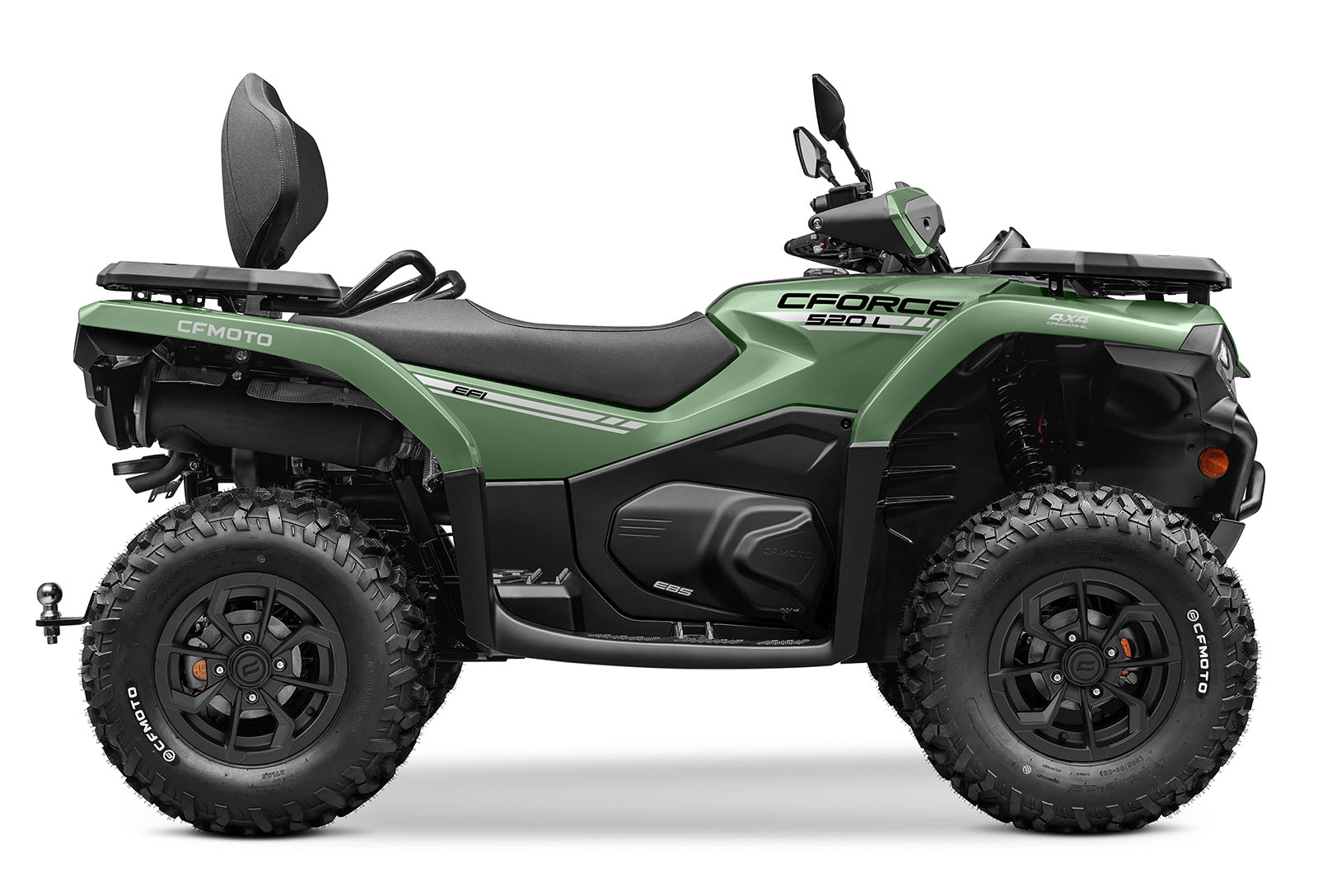

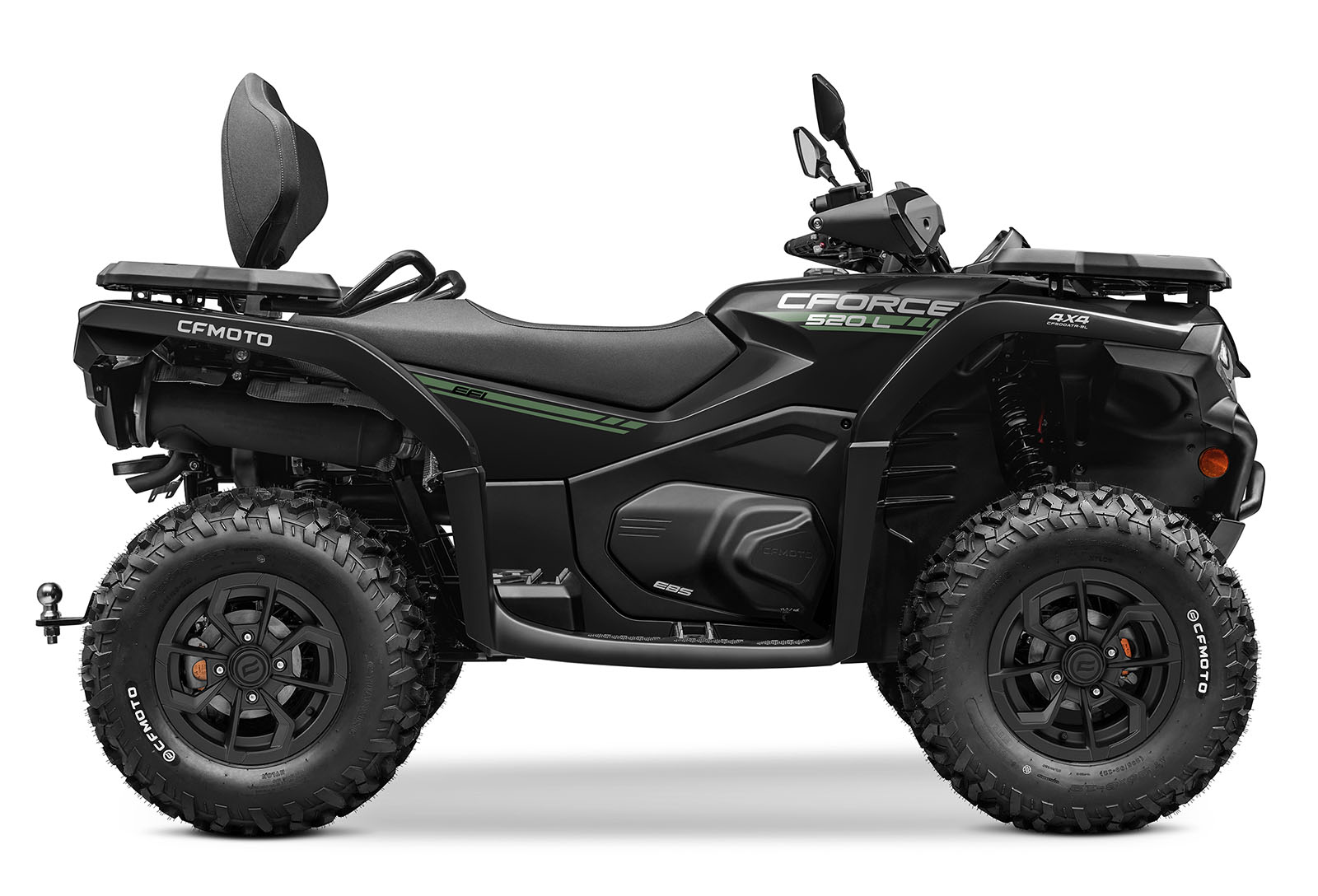

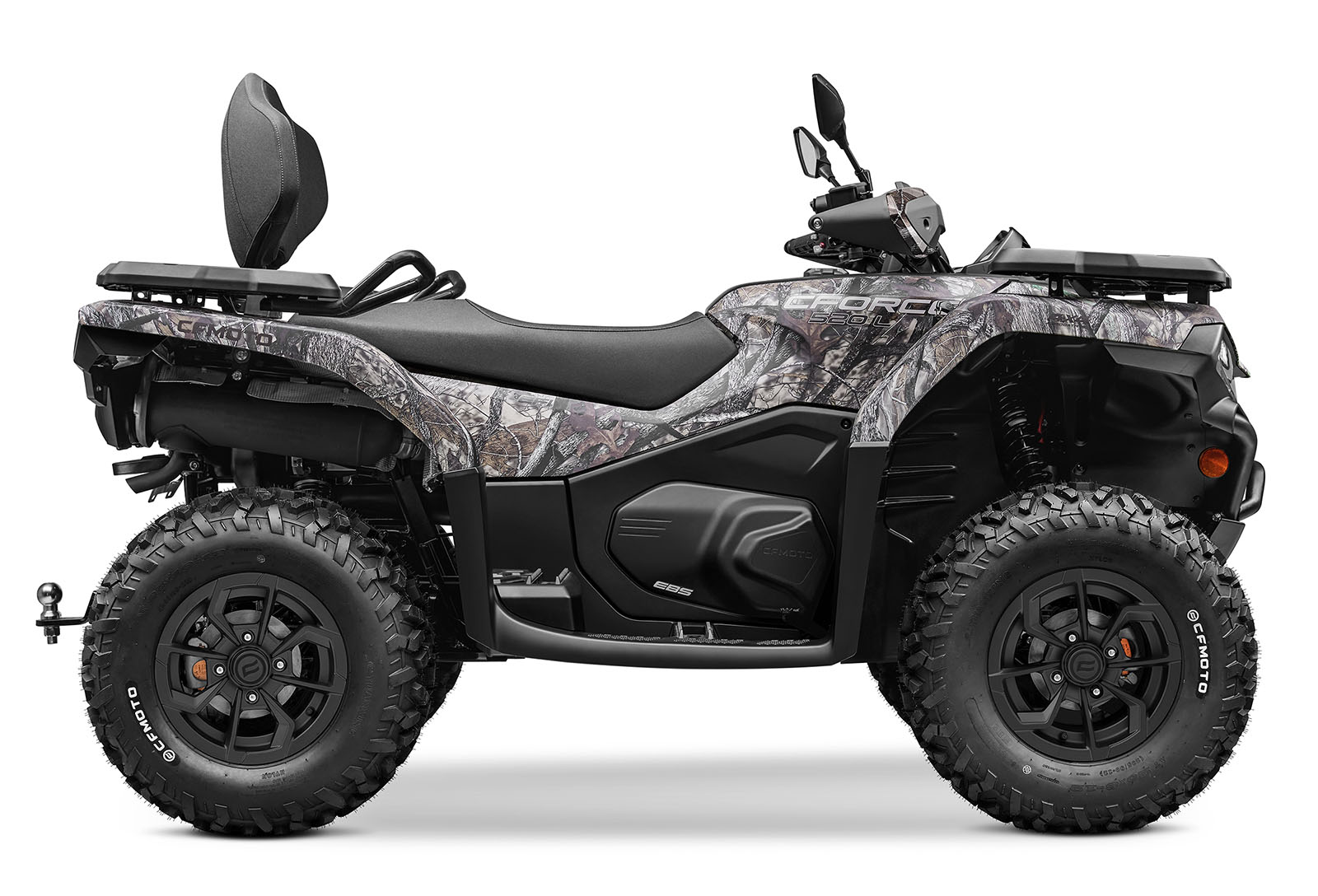

CFORCE 520

More power. Perfect all-rounder.
Suitable for hiking rides, snow removal and towing.

CFORCE 520

PERFORMANCE
AND VERSATILITY

Engine

Single-cylinder, Liquid cooled, 4-valve, SOHC, EFI

Dimensions

L: 2300 W: 1100 H: 1350mm
1460 mm wheelbase

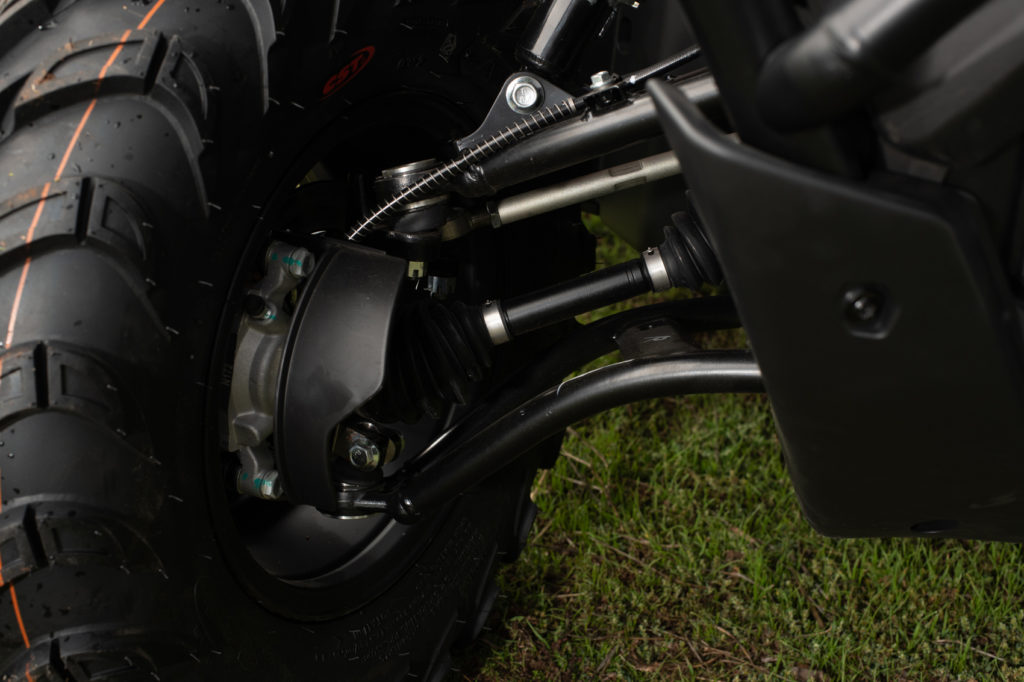

Suspension

Double A-arm

Power

495cc
Max speed 100 km/h
26.8 kW / 7300 rpm

Seat Height

540 mm

Brakes

Hydraulic

Performance

10.3:1 Compression ratio
38.4 Nm / 5750 rpm Max torque

Clearance

Minimum 250 mm

Rims

Front: 12 x 6.0 AT
Rear: 12 x 7.5 AT

Transmission

Automatic (CVT)

Weight

360 kg Curbweight
150 kg Payload capacity

Tyre

Front: 25 × 8-12
Rear: 25 × 10-12

Build your own

-€150

+€150

Choose version

Off-road only

-€200

Street legal

+€200

Wheels

Metal wheels

-€200

Alloy wheels

+€200

Steering

Regular

-€500

Power Steering

+€500

Price: €5,340
