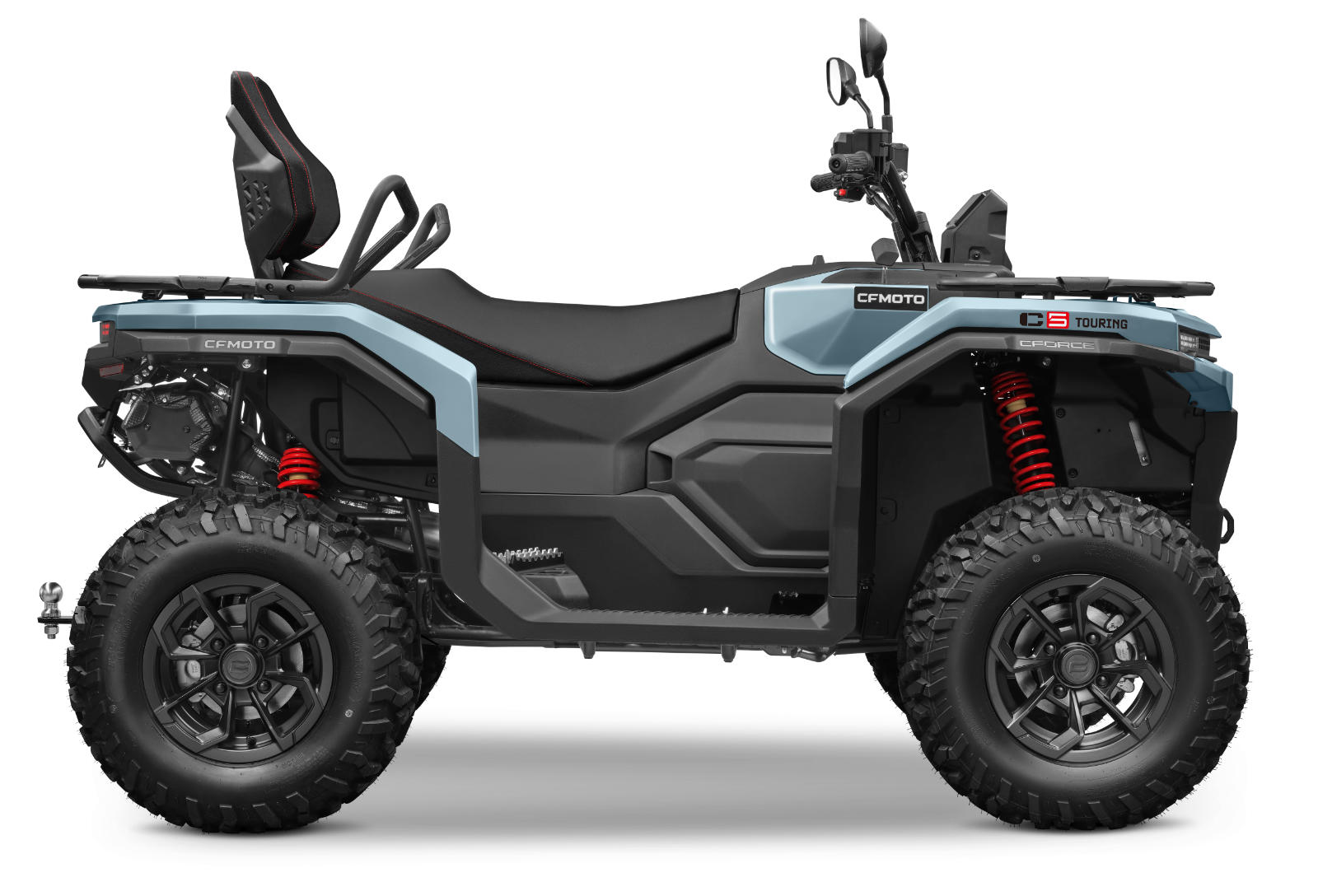

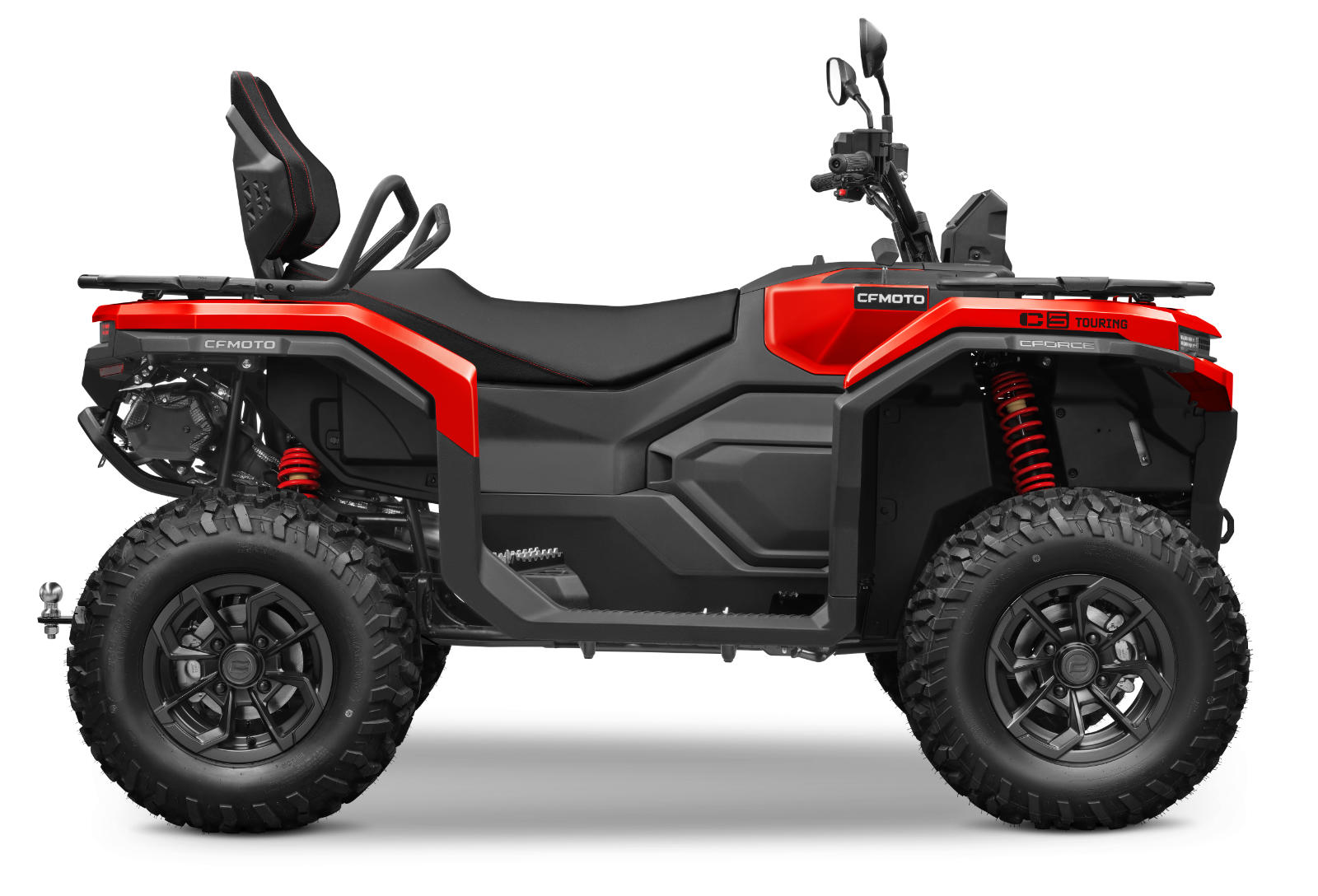

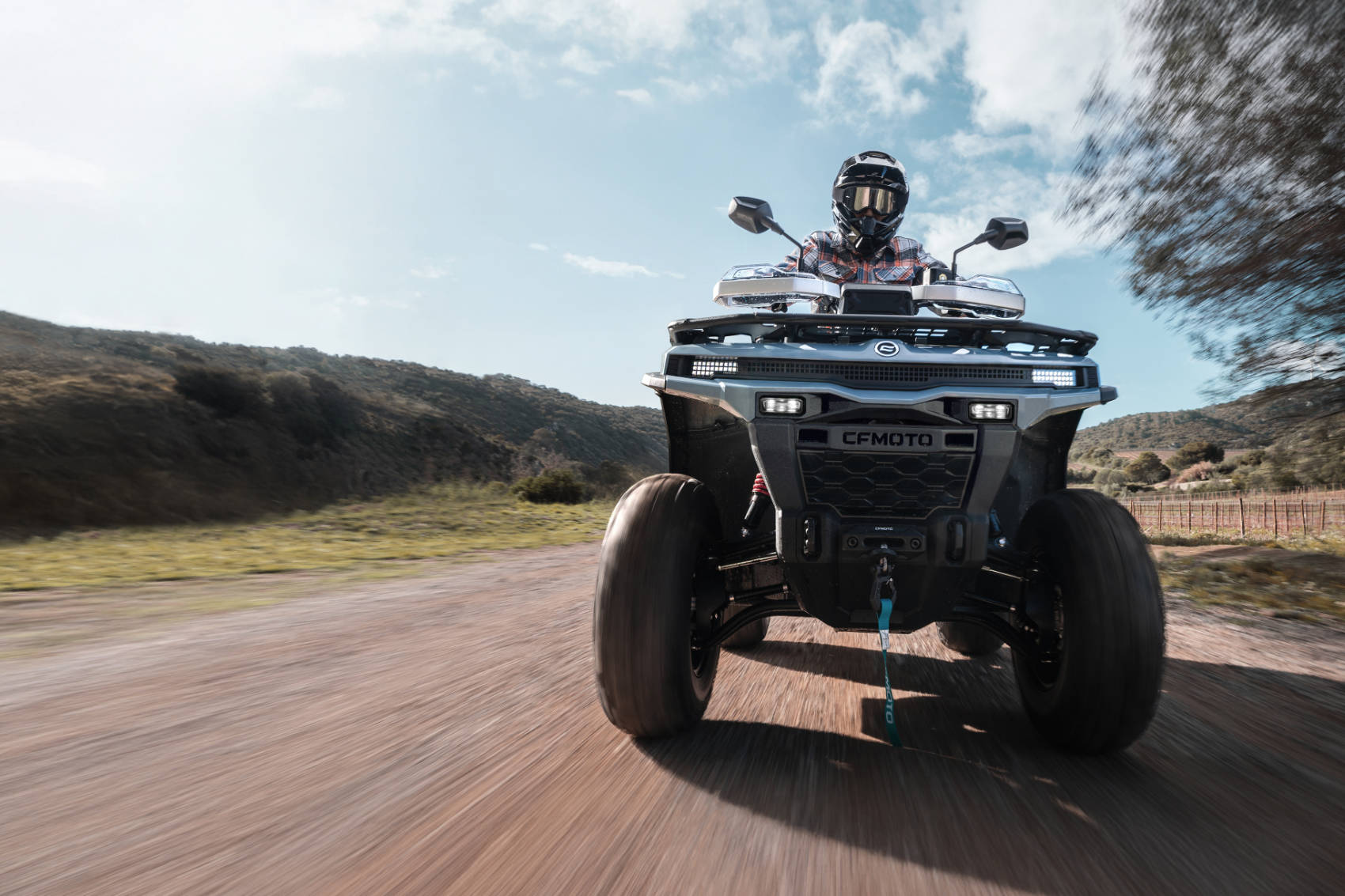

CFORCE С5
NEXT GENERATION
MIDSIZE ATV
MIDSIZE ATV
Engine
Single-cylinder, Liquid cooled, 4-valve, DOHC
Dimensions
L: 2165 W: 1175 H: 1265 mm
1290 mm wheelbase
1290 mm wheelbase
Suspension
Front: Arched double A-arm independent suspension,210 mm
Rear: Double A-arm independent suspension, 235 mm
Rear: Double A-arm independent suspension, 235 mm
Power
498.6cc
Max speed 60 km/h
29 kW / 7500 rpm
Max speed 60 km/h
29 kW / 7500 rpm
Seat Height
569 mm
Brakes
210mm Disc brakes with hydraulic caliper
Performance
10.3 ± 0.5:1 Compression ratio
43.5 Nm / 5000 rpm Max torque
43.5 Nm / 5000 rpm Max torque
Clearance
Minimum 275 mm
Rims
12" steel
12" cast aluminum (optional)
12" cast aluminum (optional)
Transmission
Automatic (CVT)
Weight
373 kg Curbweight
270 kg Payload capacity
270 kg Payload capacity
Tyre
Front: 24 × 8-12
Rear: 24 × 10-12
Rear: 24 × 10-12
