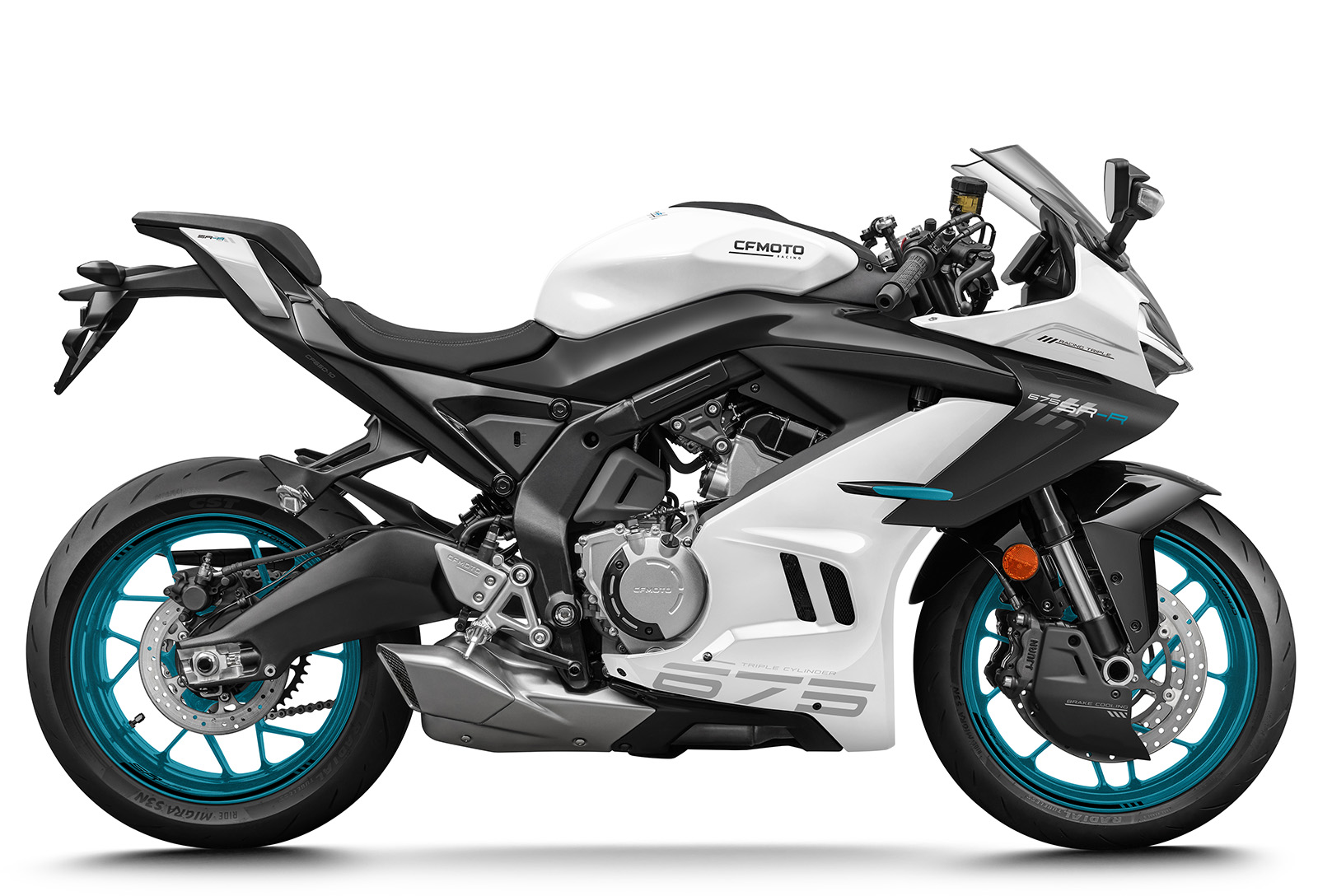

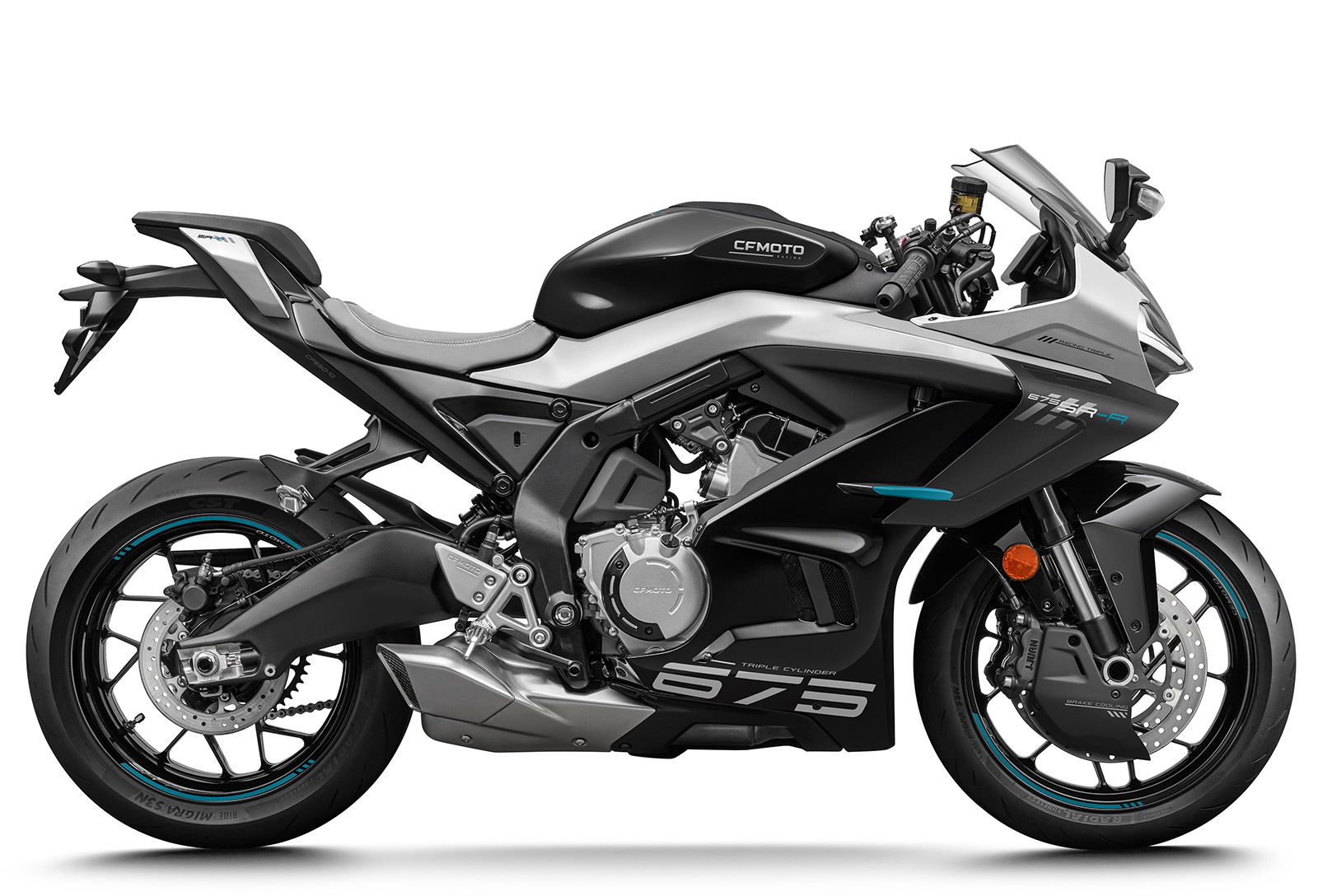

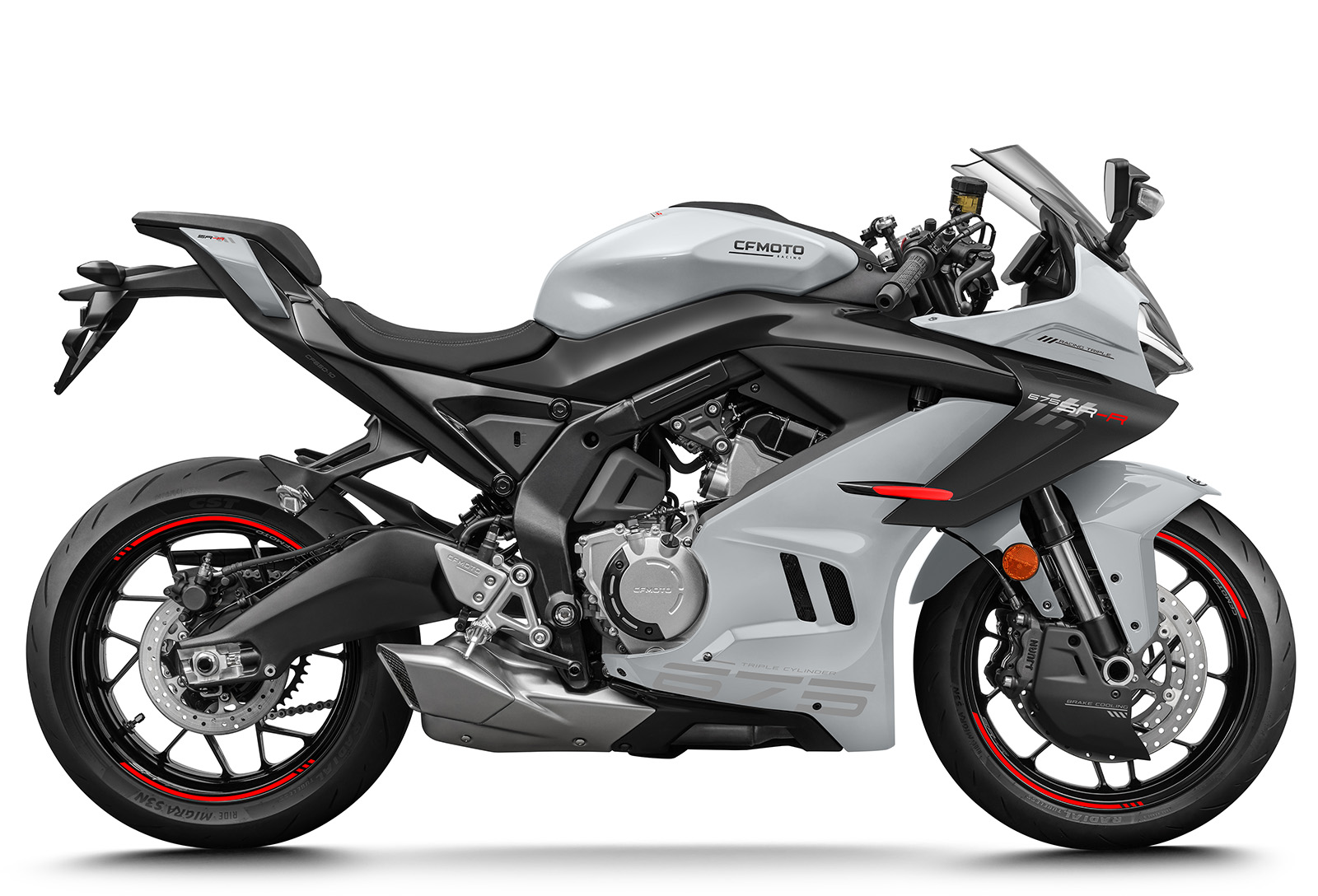

675SR-R
The aesthetic essence
of a super racing
of a super racing
Engine
Inline 3-cylinder, 4-stroke,
liquid-cooled, DOHC
liquid-cooled, DOHC
Dimensions
L: 2020 W: 728 H:1105 mm
1400 mm wheelbase
1400 mm wheelbase
Suspension
Front: ⌀41mm USD, fully adjusatble, KYB
Rear: Monoshock, adjustable preload & rebound, KYB
Rear: Monoshock, adjustable preload & rebound, KYB
Power
675 cc
Max power 70 kW / 11000 rpm
Max power 70 kW / 11000 rpm
Seat Height
810 mm
Brakes
Front: ⌀300mm twin discs, four-piston radial caliper, J.Juan
Rear: ⌀240mm single disc, single-piston sliding caliper
Rear: ⌀240mm single disc, single-piston sliding caliper
Performance
70 Nm / 8250 rpm Max torque
Clearance
Minimum 140 mm

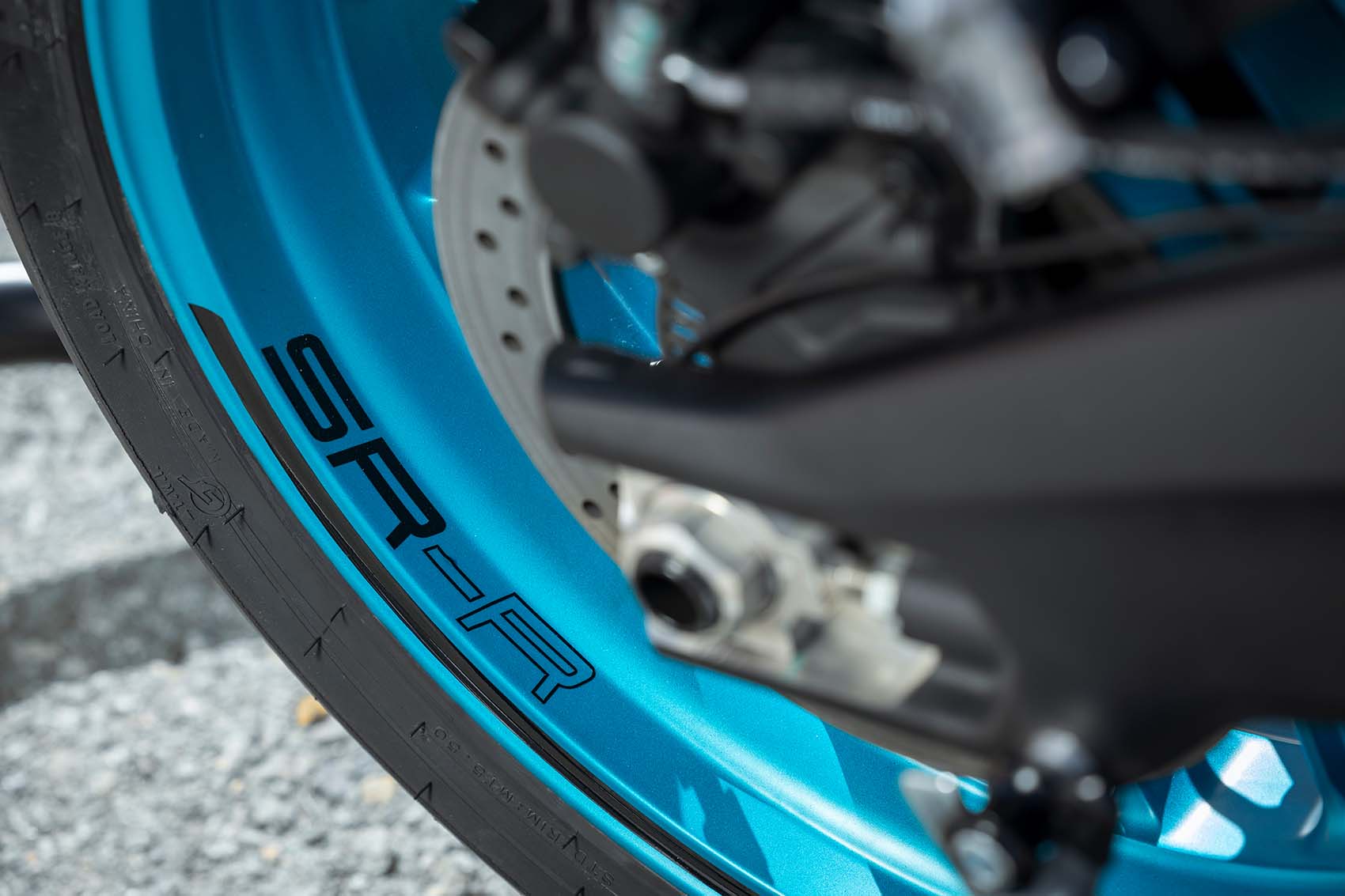

Rims
Aluminum alloy
Transmission
CF-SC slipper assist clutch, 6-speed, wet, multi-plate
Weight
189 kg Curbweight
Tyre
Front: 120/70 R17 CST S3N
Rear: 180/55 R17 CST S3N
Rear: 180/55 R17 CST S3N
